一、Product Overview

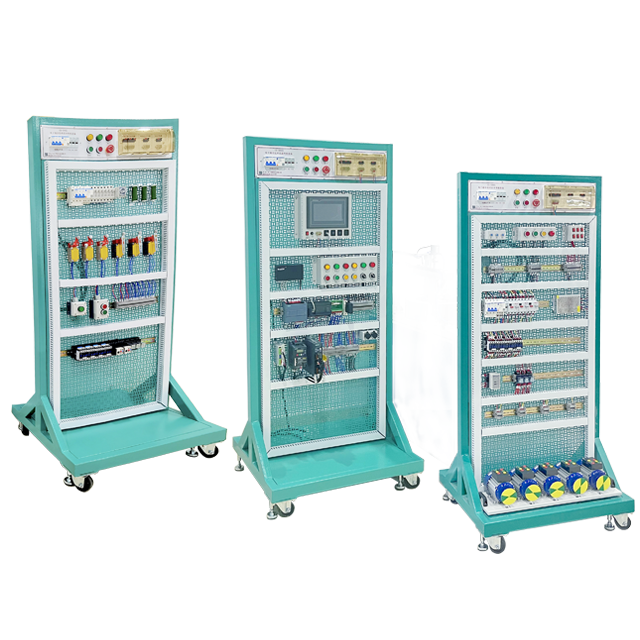

GX-S001 is based on the latest national vocational standards, as well as training and appraisal content requirements such as "Electrical Technology Level Certificate" and "Electrical Practical Operation Certificate". It is based on the assessment content of senior workers, technicians, and senior technicians in the national vocational qualification of electricians. It is suitable for teaching, training, practical operation assessment, and skill appraisal in various vocational schools, technical schools, vocational schools, labor training and skill appraisal units, It is also applicable to vocational skills competitions in the field of mechanical and electrical engineering. This equipment consists of a PLC electrical control training platform, an electric drive training platform, a fault diagnosis and maintenance measurement training platform, a computer desk, an assembly table, and training instrument tools.
二、Practical training projects
1.Engineering creation, editing, and download operations for touch screens
2.Offline simulation application of touch screen
3.Application of Input and Output Bit Elements in Touch Screen
4.Application of Input and Output Word Components in Touch Screen
5.Application of XY curve graphic components in touch screens
6.Application of Animation Components in Touch Screen
7.Application of numerical and text input display components on touch screens
8.Application of components such as alarm information and event login on touch screens
9.The application of timer and other components in touch screens
10.Comprehensive application of touch screen system
11.Wiring and debugging of stepper motor driver
12.Setting of stepper motor driver parameters
13.Pulse positioning control of stepper motor driver and PLC
14.Wiring and debugging of servo motor driver
15.Setting of servo motor driver parameters
16.Pulse positioning control of servo motor driver and PLC
17.Installation and debugging of contactor inching forward rotation control circuit
18.Installation and debugging of contactor self-locking forward rotation control circuit
19.Installation and debugging of contactor forward control circuit with overload protection
20.Installation and debugging of inching and continuous mixed forward control circuit
21.Installation and debugging of forward rotation control circuits in two locations
22.Installation and debugging of a button to start and stop the control circuit
23.Installation and debugging of contactor interlocking forward and reverse control circuit
24.Installation and debugging of contactor double interlocking forward and reverse control circuit
25.Installation and debugging of position control circuit
26.Installation and debugging of automatic cycle control circuit
27.Installation and debugging of automatic round-trip control circuit for contactor interlocking
28.Installation and Debugging of Sequential Start Reverse Stop Control Circuit
29.Installation and debugging of button, contactor control Y, and step-down starting circuit
30.Installation and debugging of button and contactor controlled dual speed motor circuit
31.Installation and debugging of automatic round-trip control circuit with inching
32.Installation and debugging of automatic control circuit for dual speed motor (from low speed to high speed)
