一、Product Overview

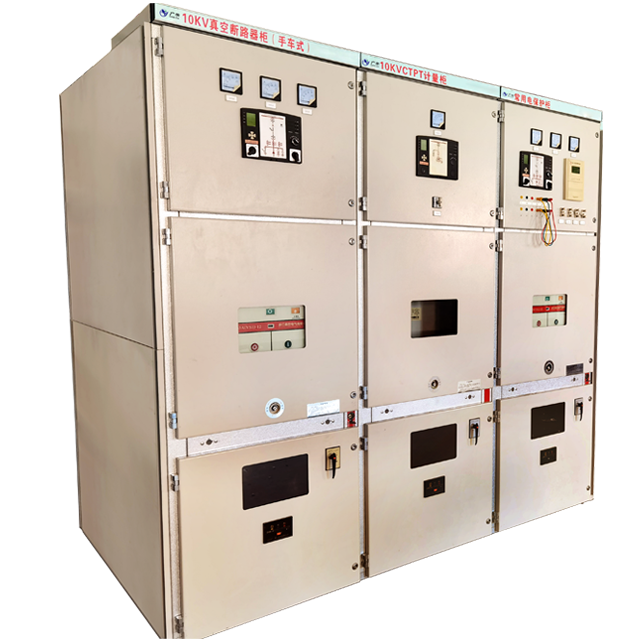

The equipment in the high-voltage distribution operation training room adopts the process and requirements design of high-voltage switchgear, which is divided into busbar compartments, circuit breaker compartments, cable compartments, and low-voltage compartments, as well as components such as lightning arresters, current transformers, grounding switches, vacuum circuit breakers, and relay protection systems. Suitable for teaching and training as senior maintenance electricians in vocational colleges, technical schools, etc. on relay protection, feeding, and other contents in high-voltage distribution systems.
二、Technical Parameter
1)Boundary dimension: 750 × nine hundred and twenty × 1855mm；
2)Working power supply: three-phase five wire power supply 380V ± 5% 50 Hz (secondary side)；
3)Rated power ≤ 1.5KW (secondary side)。
三、Practical training projects
1.Cognitive Training of High Voltage Devices
2.Practical Training on Measurement and Production of High Voltage Primary Circuit Diagram
3.Practical Training on Measurement and Production of High Voltage Secondary Circuit Diagram
4.High voltage distribution cable connection training
5.Inspection and Test Training of Vacuum Circuit Breakers
6.Safe operation of high-voltage distribution cabinets
7.Installation and Maintenance of High Voltage Distribution Cabinet
