一、Product Overview

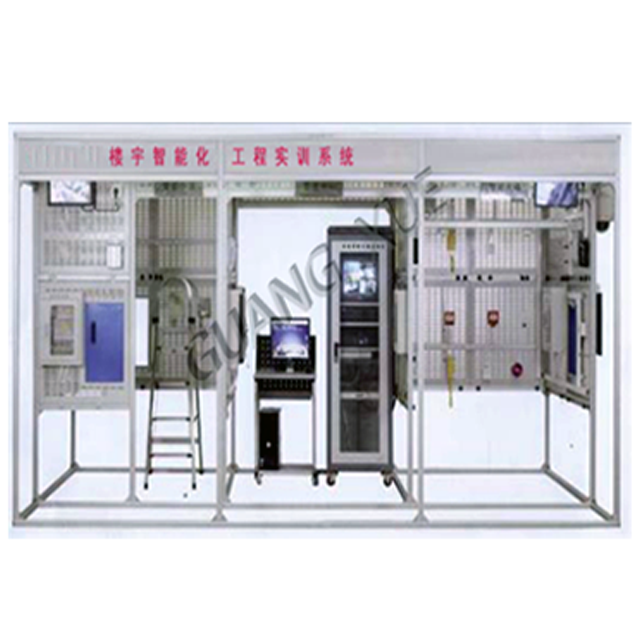

Product Overview The system is an intelligent building technology training and assessment equipment developed by vocational colleges, technical colleges and vocational education and training institutions. Its hardware consists of four parts: architectural model, system components, auxiliary materials and tools. The architectural model mainly includes advanced aluminum profile support, mesh plate and simulated building facilities; The system components mainly include various power supplies, networks, monitoring, display, input and output devices, etc; Auxiliary materials mainly include various wires, trunking, cable trays, connectors, and fasteners; Tools mainly include herringbone ladders, various commonly used and specialized tools, etc. The software consists of various specialized system software and general monitoring software.

The equipment enables students to design, install, wire, wire, program, debug, run, diagnose and maintain the "automatic fire alarm and fire linkage system", "visual intercom and indoor security system", "video monitoring and surrounding security system", "intelligent lighting system" and "integrated wiring system" in the architectural model, To understand the practical application of each system in engineering and proficiently grasp its fundamental technical points; Able to train and test students' abilities in teamwork, planning and organization, communication, engineering planning and implementation, enrich professional literacy, and improve comprehensive professional skills.

二、Technical Parameter

1)Power input: single-phase three wire/AC220V/50Hz；

2)Overall power consumption: ≤ 0.75KW；

3)Boundary dimension: 4600mm × 2200mm × 2300mm long × wide × High) (± 5%)；

4)Skip level tripping protection unit: composed of current limiting elements, leakage protection modules (30mA/≤ 0.1s), and alarm auxiliary contacts, it can effectively limit the short-circuit current intensity, timely cut off the power supply at the same level without causing false tripping actions of the same or higher level power supply, ensuring the normal operation of computers and other electrical equipment；

5)Power short circuit detection and protection unit: composed of sampling power supply, short circuit detection and protection board, contactor, auxiliary contact, self reset button, and emergency stop switch, it can automatically detect power short circuit faults caused by incorrect wiring and lock the output of the power supply. After the short circuit fault is eliminated, it can manually reset the normal power supply to the equipment, effectively protecting the safety of equipment and personnel。

三、Practical training projects

1.Visual intercom access control and indoor security training;

2.Practical training on CCTV monitoring and surrounding prevention;

3.Fire alarm linkage training;

4.Comprehensive wiring training;

5.DDC monitoring and lighting control training;

6.Smart Home Training;

7.Building intelligent engineering design capability;

8.Design, installation, construction, and debugging capabilities of the fire alarm system;

9.Design, installation, and debugging capabilities of video surveillance systems;

10.Ability to design, install, and debug intercom access control and indoor security systems;

11.Construction capacity of comprehensive wiring system;

12.DDC's wiring, programming, and debugging capabilities;

13.Monitoring software configuration, communication, and operational capabilities;

14.Intelligent building system fault diagnosis and debugging capabilities.
