一、Product Overview

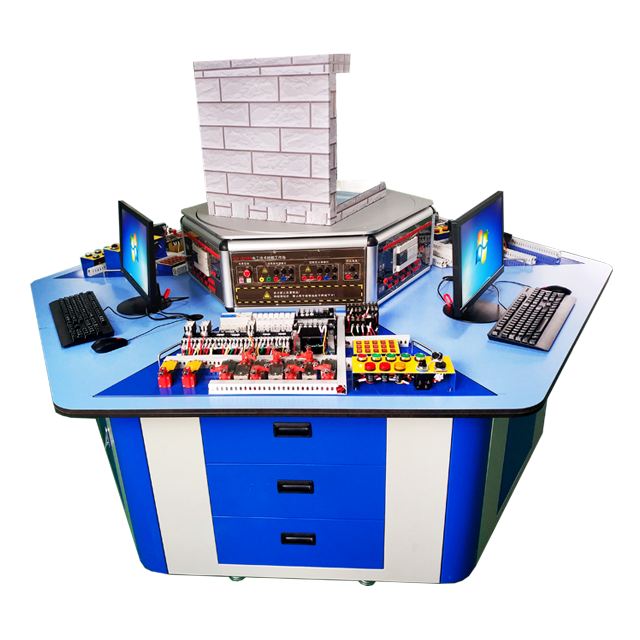

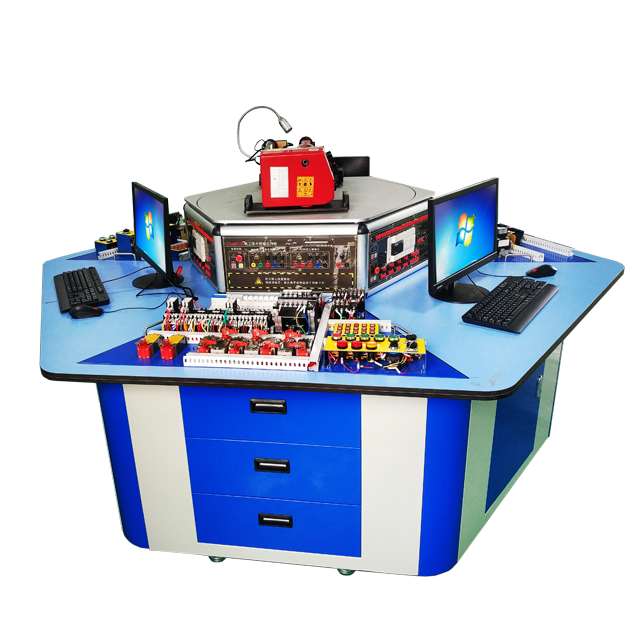

TheGX-JD10A power control screen adopts a hexagonal structure, corresponding to the workbench. The frame is made of 30R semi-circular aluminum profiles assembled with dedicated connectors, and the top and bottom plates are connected after CNC precision machining using 1.2mm thick high-quality steel plates. Three of the working surfaces are equipped with a fixed training power control system, and the control panel buttons are designed with thin film light touch, with leakage protection and short circuit protection functions; The other three workspaces are activity training modules, which can be moved out and placed in different training modules at any time according to the training needs.
二、Practical training projects
Practical training content for electric towing
1. Direct start control of three-phase motor
2. Three phase motor inching control
3. Three-phase motor self-locking operation control
4. Reverse braking control for one-way operation
5. Time relay control motor Y/△ voltage reduction starting control
6. Automatic round-trip travel switch control of the workbench
Indoor Lighting Distribution Training Content
1. Socket and a switch control a lamp
2. Wiring of fluorescent lamp circuit
3. Connection method for controlling incandescent lamp circuit with voice controlled switch
4. Direct wiring circuit of single-phase watt-hour meter
5. Installation of distribution boards
6. Connection method for controlling one lamp from two places
Machine Tool Fault Simulation Training Content
1. T68 Machine Tool Fault Simulation Training
2. X62W Machine Tool Fault Simulation Training
3. CA6140 Machine Tool Fault Simulation Training
4. Practical training of physical small machine tools
