一、Product Overview

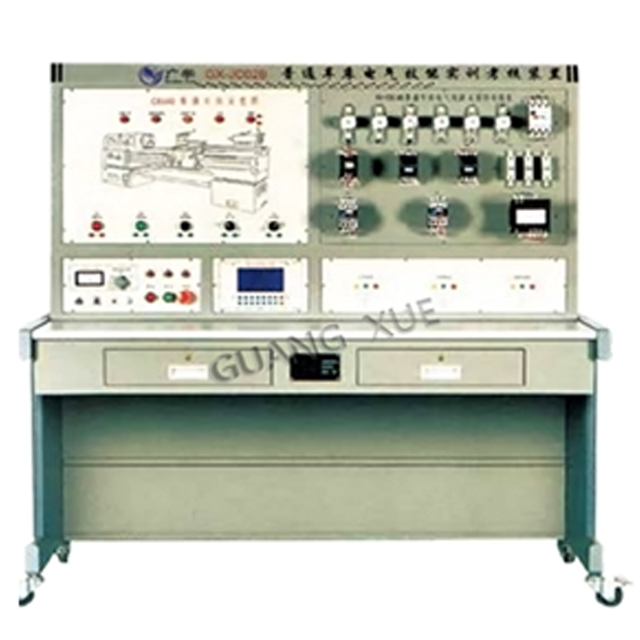

The GX-JC02B CA6140 machine tool circuit training and assessment equipment consists of a power control part, a machine tool electrical control part, and a semi simulation machine tool physical part. 1. The power control part includes: training timing, timing alarm, automatic control of safe electricity use, etc; 2. The electrical control part of the machine tool includes: the internal electrical appliances of the entire machine tool are installed on the front panel, which can visually observe the operation status of each electrical appliance during the operation of the machine tool. 3. The fault point is equipped with corresponding test points on the panel for practical training assessors to test. 4. The simulation machine part can simulate various movements of the machine tool. 5. Through the practical training of GX-JC02B CA6140 machine tool circuit training and assessment equipment, students can master the common phenomena of machine tool faults, the approximate locations of faults, and proficiently grasp the working principles of the bed circuit. It is an ideal equipment for the initial, intermediate, and advanced skill appraisal of maintenance electricians.

二、Technical Parameter

1)Input power supply: three-phase four wire (380V ± 10% 50Hz)；

2)Working environment: temperature -10 ℃~+40 ℃, relative humidity<85% (25 ℃)；

3)Device capacity: ＜ 1KVA；

4)Weight: 150kg；

5)External dimension: 1800mm × 700mm × 1250mm。

三、Practical training projects

1.Familiar with the mechanisms and principles of commonly used low-voltage electrical systems;

2.By observing the simulated motion of the machine tool, understand the true motion status of the machine tool;

3.Master the principles of machine tool electrical control and various protective devices;

4.Master the common phenomena and troubleshooting methods of machine tool faults.
