一、Product Overview

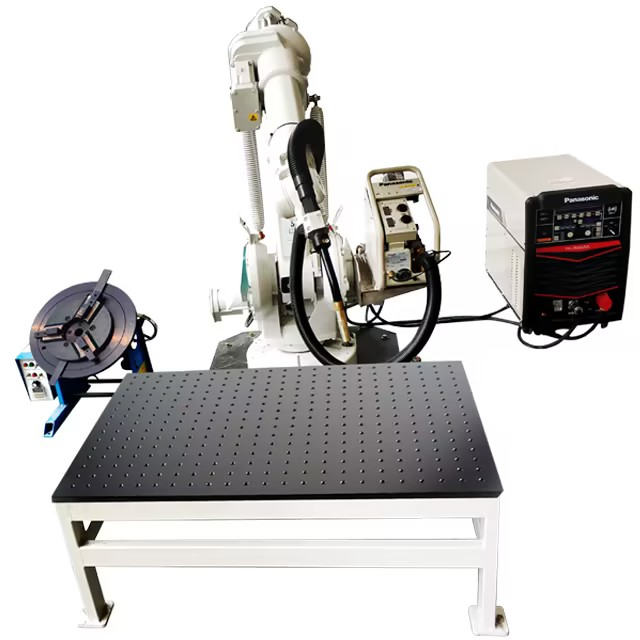

The GX-R16 industrial robot welding training workstation is based on the actual application in the factory, and optimized and improved according to the teaching characteristics to achieve both teaching authenticity and safety, while ensuring the durability and high cost-effectiveness of the equipment. Fully digital argon arc welding machine, teaching the composition and basic operations of the welding robot system, learning how to build a welding robot system and related maintenance and troubleshooting skills, online teaching and programming of welding trajectory, online language programming of welding trajectory, offline programming of welding trajectory, and expandable addition of complex spatial welding trajectory applications in conjunction with a positioner workbench, It is possible to flexibly expand more comprehensive teaching content on the basis of achieving basic teaching.
二、Technical parameters
1) Six axis robot standard configuration: ABB IRB1410 6-degree of freedom specialized welding industrial robot;
2) Boundary dimension: L3000mm × W3000mm × H1800mm；
3) Welding power supply, wire feeder, welding gun: Panasonic;
4) Working power supply: three-phase four wire 380V ± 5% 50HZ;
5) Safety protection: leakage protection, overcurrent protection, short circuit protection;
6) Overall weight: 280kg;
7) Environmental temperature: -10~50 ℃;
8) Relative temperature: ≤ 85%.
三、Practical training projects
1. Use robot offline software for real-time program, IO, and robot 3D dynamic motion monitoring;
2. Practical training on robot programming, assembly and maintenance, automatic welding process, etc. based on ABB robots;
3. Based on the basic principles, structure, and engineering application cases of ABB robots;
4. Application cases of special software for arc welding robots.
